Bottom seal and retainer
The flexible insert meets the floor and the retainer holds it on the door. Garaga distinguishes replacing a damaged insert from replacing a damaged seal assembly. The profile needs to fit. [1]
top of page
Garage Door Knowledge Center
Garage door weather seals & gaps
Find the location of the gap, understand the different seals, and ask for a repair that matches the problem.
★★★★★40+ five-star Google reviews
- Local, veteran-owned business
- Talk directly with Wesley
- Clear, upfront repair pricing
- Licensed • Bonded • Insured
Wesley Zietz Your local garage door professional
Published by Trinitron Garage Doors · Meet owner Wesley Zietz
Manufacturer references and photo credits are listed in this guide.
A homeowner’s guide
Find the gap before choosing the seal.
Daylight beneath the door, a draft along one edge, and water entering after rain do not automatically call for the same fix. Start with the location and the conditions when it happens.
A wider piece of rubber may not answer a problem caused by the retainer, door alignment or the floor. Describe the result you want before selecting the part.
Do not increase opener force to squeeze a gap shut or remove a bottom bracket to reach a seal. If the door is crooked or struggling, arrange a door inspection before treating the issue as weatherstripping.
01
Recognize the situation
What is getting through?
These observations help separate comfort, weather and mechanical questions.
Daylight or drafts
Note the exact edge and whether the gap is continuous or limited to one corner.
Rainwater
Record where moisture first appears and whether it follows heavy rain, runoff or washing.
Torn or flattened material
Describe the visible seal condition and any damage to the strip that holds it in place.

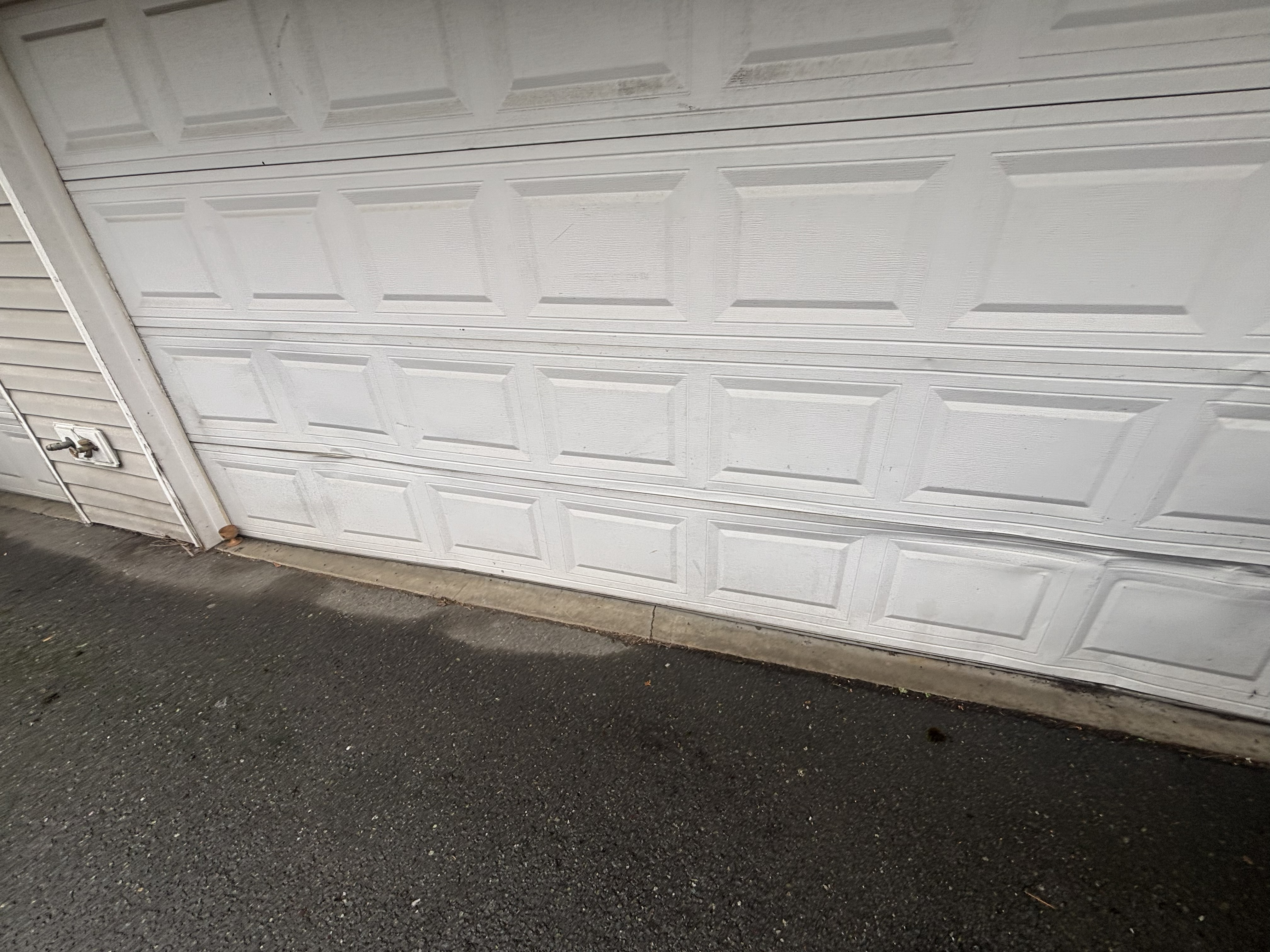

A closer look
Include the floor in the picture.
A useful photo shows the length of the bottom edge and its relationship to the sill. One tight close-up may not show where water travels or how the door meets the floor.
This example illustrates the viewing angle; it does not establish a damaged seal or a leak.
02
Understand the system
Seal insert, retainer and perimeter trim.
A clear quote names the component instead of using “weatherstrip” for every edge of the opening.
Side and top weatherstripping
Perimeter seals meet the sides and top of the closed door. A floor threshold is a separate product. Ask which edge is being treated and whether the proposed work affects normal travel. [4]
03
Make an informed choice
New rubber is not a universal water fix.
DASMA’s water-entry guidance discusses slab and sill geometry as part of controlling rainwater beneath sectional doors. That is why a wet garage should not receive an automatic promise that a seal change will make it watertight. [2]
Tell Wesley when you see water and where it begins. Ask whether the proposal addresses the seal itself, a door condition, or a site drainage issue needing separate attention. The expected improvement should be clear before the work starts.
04
From information to action
Choose the next step.
01 / NEXT STEP
Show the location
Provide the approximate door width, affected edge and safe wide photos.
02 / NEXT STEP
Confirm the assembly
Review insert, retainer, perimeter trim or threshold needs before choosing parts.
03 / NEXT STEP
Check the result
Ask how fit and door travel will be checked and what ongoing care the seal needs.
Ready to review your repair options?
Use the Repair Wizard for the currently listed services, review your quote, and continue to booking. If the cause is uncertain, request an estimate from Wesley.
From our customer stories
Real jobs that explain this topic
Checking the seal is one part of completing a door installation. Here is a documented example from the existing project stories.
An insulated door selected for a Lake Stevens renovation
- Problem or project need
- Daren was replacing an older door as part of an exterior renovation and wanted to improve the appearance and function of the garage.
- Work performed
- Trinitron installed the selected insulated door, then adjusted and tested it for balance, sealing and smooth operation.
- How this connects to the guide
- The recorded finishing checks included the seal as well as door movement. This example describes an installation; it does not establish a measured energy saving or a remedy for every existing floor gap.
Daren’s review says the new door improved the home’s appearance and helped complete the renovation.
Summaries use the work descriptions and customer feedback on the linked project pages. Each job has its own scope; your repair and price may differ.
05
Quick answers
Common questions
Will a bigger bottom seal close every gap?
The door, retainer and floor all affect the result. Ask whether a larger compatible seal addresses your specific gap without interfering with normal operation.
Can only the flexible insert be replaced?
Sometimes. It depends on the seal design and the condition of the retainer; a damaged assembly may require more than the insert. [1]
Will a new seal stop rainwater completely?
That cannot be promised from a seal photo alone. The floor, sill and water path need consideration. [2]
What should I use to care for the weatherstripping?
Use the instructions for the seal material. Garaga warns that petroleum-based products can impair PVC weatherstripping and specifies suitable silicone care. [3]
Where do I price the work?
Review the relevant seal or hardware selection in the Repair Wizard. If the gap or water source is uncertain, request an estimate first.
Read the source material
Guidance you can check.
These primary references support the technical explanations. Use the instructions for your exact door and opener when a procedure or product requirement depends on the model.
- [1] GaragaBottom weatherstripping and retainersDistinguishing a replaceable seal insert from a damaged retainer.
- [2] DASMA · TDS 197Water beneath a sectional doorHow the slab and sill affect rainwater entry.
- [3] GaragaBottom weatherstripping guidanceDifferent seal assemblies and material-specific care.
- [4] DASMA · TDS 160Sectional garage door terminologyTracks, hardware, weatherseals and installation clearances.
